- Have the Vehicles Transmission warm, raised up in the air & idling in Park

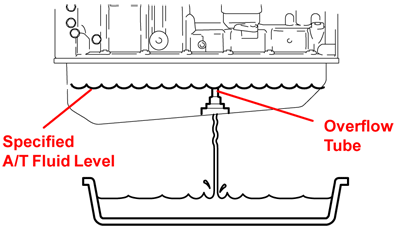

- Undo the 5mm allen key (check fluid level plug) located under the trans, and confirm that oil spills out
- If trans fluid spills out, this means fluid is full
- If there is no trace of fluid coming out of the hole, the trans is in need of topping up
|
|
| |

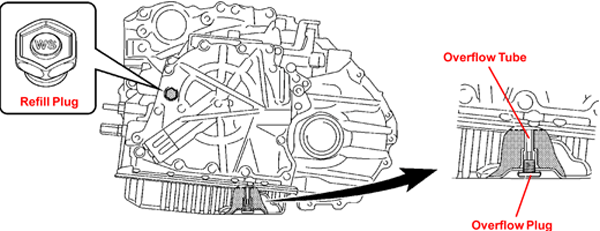

- To fill this transmission with fluid, you need to insert fluid through the tiny access hole located on top of the oil pan (facing the front of the vehicle)
- The access hole is plugged up with a grommet which needs to simply be removed
|
|
 |
|
- Undo the drain plug located on the bottom of the transmission and let drain
- Follow procedures (adding fluid & checking fluid level as above)
|
 |
|
Beware use caution:
Do not attempt to undo the plug located on the side of the transmission as this will disengage the band assembly causing it to loose
reverse and slippage in forward gears. |
|
